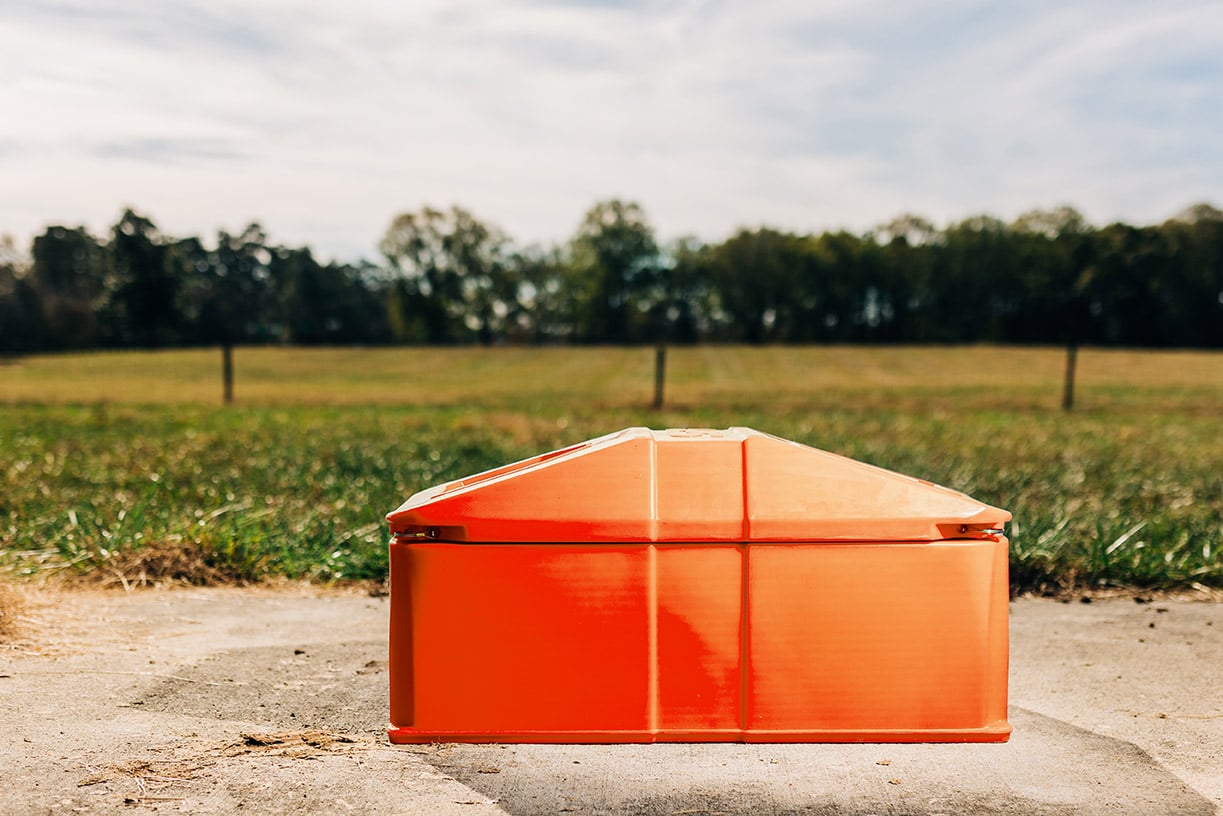

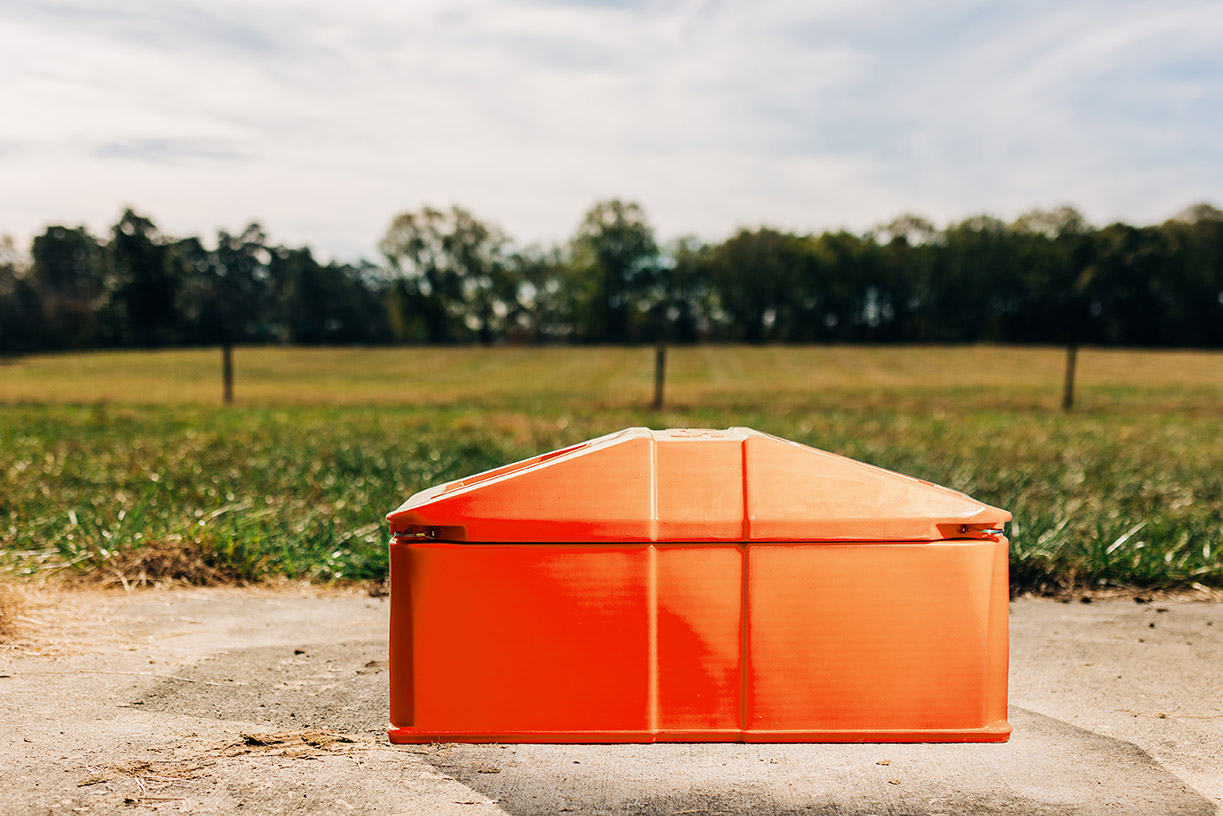

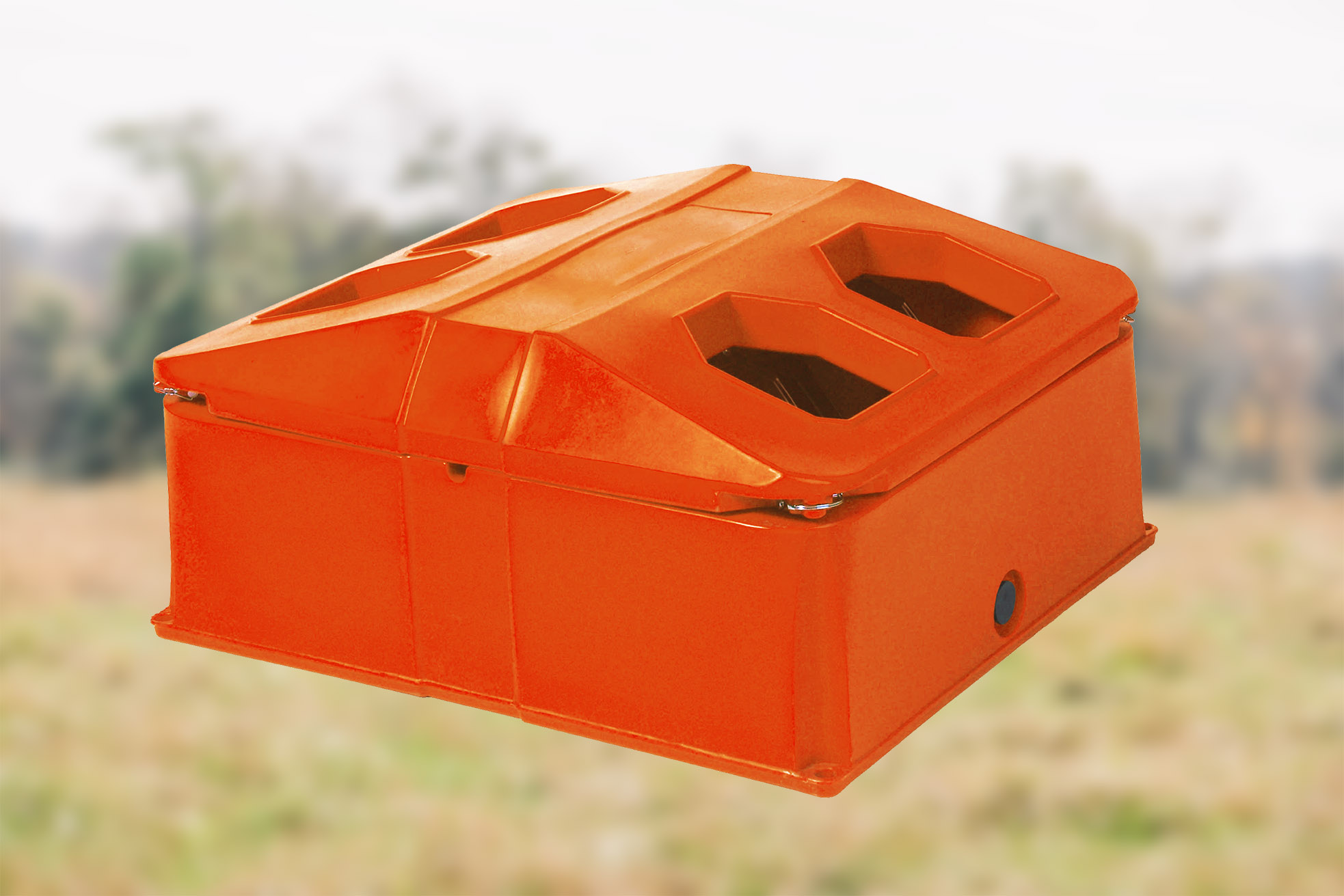

Model: 354NG Quad Energy Free Automatic Waterer
When you’re managing large herds in pasture environments, you need automatic and reliable water access. The Tusker Quad Energy-Free Waterer is a high-capacity automatic livestock waterer designed for up to 200 head. Connected to a waterline for continuous refill, this unit uses insulation and a sealed multi-lid system to help reduce freezing risk without electric heat, keeping water accessible while lowering energy costs.
- Waters up to 200 head with four drinking access points
- Automatic refill with waterline connection
- No electric heat required (reduces energy costs)
- Insulated, sealed design helps reduce freezing risk
- Four openings reduce crowding and improve herd flow
- Keeps water cleaner by limiting debris and contamination
- Fast draining for quick cleaning and maintenance
- Built tough with UV-resistant, corrosion-resistant polyethylene
Specifications
- 41'' x 36'' x 19''
- 15'' Drinking Height
- 40 Gallon Capacity

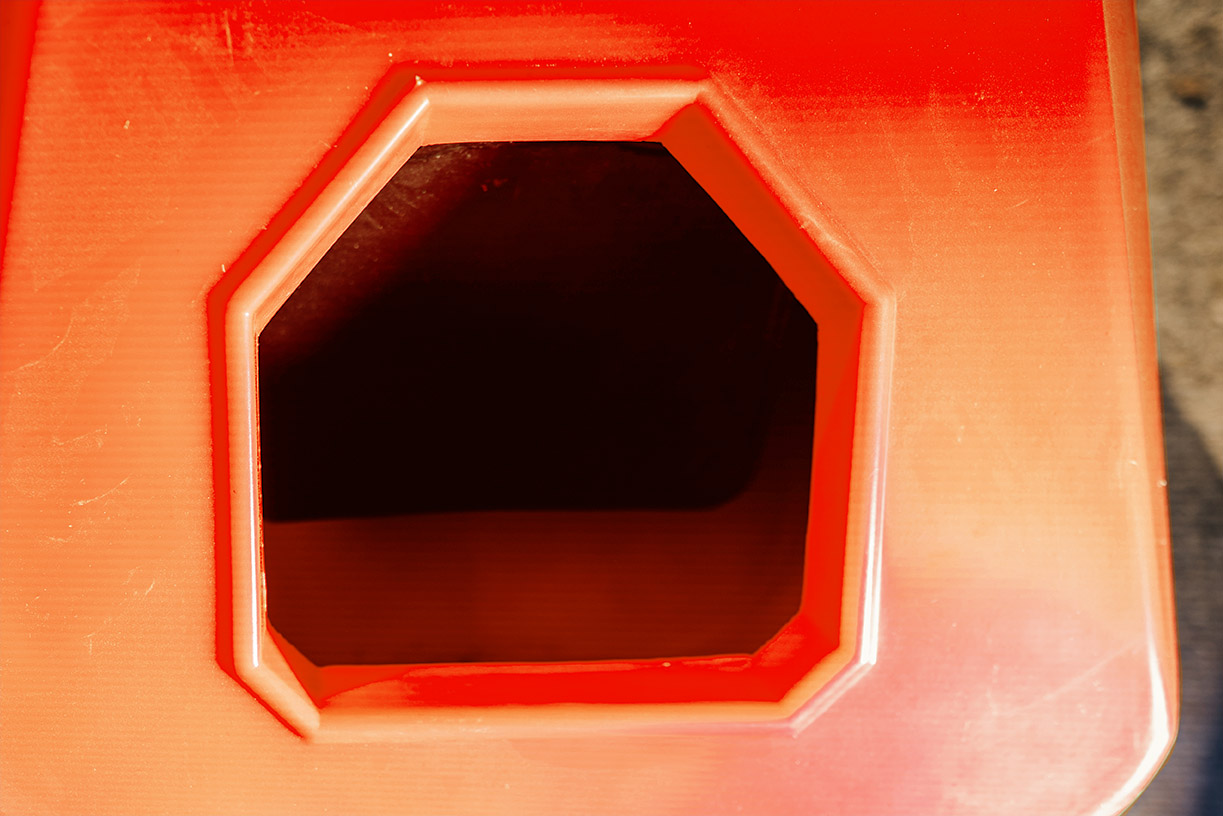

- Door Openings (4): 9.5'' x 9.5''
Some pictures may show our 352NG Double Energy-Free Waterer
What Does “Energy-Free” Mean?
In this system, “energy-free” refers specifically to no electric heating required.
This waterer:
- Connects to a pressurized waterline
- Uses a float valve for automatic refilling
- Relies on insulation and ground temperature to help reduce freezing
It does not require:
- Electric heaters
- Power connections
- Ongoing energy costs for winter operation
This makes it a cost-effective alternative to heated waterers in moderate winter climates.
Key Benefits
Maximum herd access
Four drinking openings allow multiple animals to drink simultaneously, reducing bottlenecks and stress
Built for large operations
Designed for herds up to 200 head, making it ideal for high-demand pasture environments
No electric heat required
Eliminates the need for heaters while maintaining reliable winter performance in many climates
Freeze-resistant performance
Insulated construction and sealed lid system help retain heat and reduce freezing risk
Cleaner water, healthier livestock
Sealed design helps block debris, birds, and insects
Low maintenance design
Simple system with minimal moving parts and no electrical components
Fast, efficient cleaning
Large drain allows quick emptying and reduced downtime
Automatic refill system
Float-controlled valve maintains consistent water levels without manual filling
FAQ
What does “energy-free” mean?
It means the unit does not require electric heat. Instead, it uses insulation and a sealed design to help reduce freezing.
Does this waterer require electricity?
No electricity is required for operation, but the unit must be connected to a waterline for automatic refilling.
Will this work in extreme cold climates?
In moderate climates, the insulated design helps prevent freezing without heaters. In extreme cold, heated waterers may be more reliable.
Does it automatically refill?
Yes. A float valve connected to a waterline keeps the water level consistent as livestock drink.
